Slaughterhouse Carcass Chiller

November 24, 2024 / by admin / in Red Meat

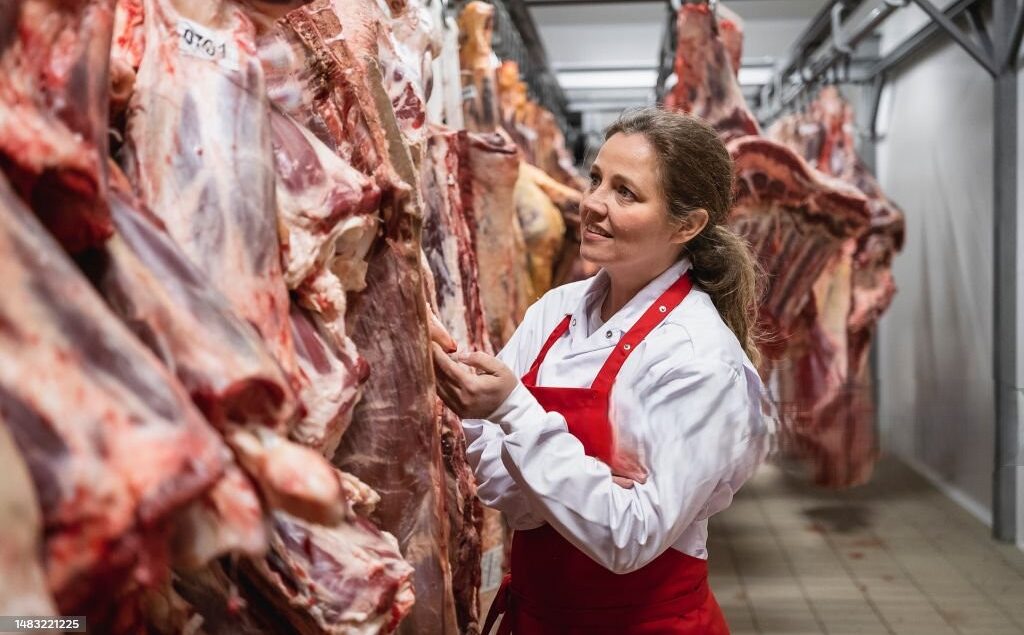

carcass chiller

A carcass chiller is a critical component of any modern slaughterhouse, designed to quickly cool the freshly slaughtered animal carcasses to ensure hygiene, preserve quality, and meet regulatory standards. Typically, the room temperature of a carcass chiller is maintained between 0 to 4°C, while the carcass core temperature is required to reach +7°C or lower. This process plays a vital role in maintaining the freshness and quality of meat, enhancing shelf life, and complying with food safety regulations.

Why is Carcass Chilling Important?

  1. Microbial Safety: Rapid cooling inhibits microbial growth, which thrives at higher temperatures, ensuring the meat is safe for consumption.
  2. Preserving Meat Quality: Proper chilling minimizes spoilage, reduces discoloration, and prevents undesirable odors.
  3. Tenderness and Texture: Controlled cooling reduces stress on the muscle fibers, leading to tender and high-quality meat.
  4. Regulatory Compliance: Many international and local standards mandate carcass core temperatures to reach +7°C before further processing or transport.

Benefits of Carcass chiller

  • Enhanced Shelf Life: Slowing bacterial activity extends the freshness of the meat.
  • Reduced Drip Loss: Proper chilling prevents excessive moisture loss, maintaining product weight and quality.
  • Improved Appearance: Chilled carcasses retain a bright and fresh appearance, appealing to consumers.
  • Food Safety Assurance: Compliance with standards like ISO 22000 and HACCP ensures safe and premium-quality meat.

Engineering and Design Considerations

1. Temperature Control

  • Room Temperature: The chiller room should be maintained at 0 to 4°C to facilitate heat exchange effectively.
  • Core Temperature: Carcasses must reach a core temperature of +7°C or below within 24 hours to meet food safety standards.

2. Heat Load Calculation

Proper heat load calculation is essential to select the correct refrigeration system. Key factors include:

  • Carcass Load: Weight and number of carcasses to be chilled at a time.
  • Ambient Conditions: Initial carcass temperature, external temperature, and humidity levels.
  • Cooling Time: Duration required to achieve the target core temperature.

Formula:

Heat Load (kW)=Q×C×ΔT\text{Heat Load (kW)} = Q \times C \times \Delta THeat Load (kW)=Q×C×ΔT
Where:

  • QQQ = Mass of carcass (kg)
  • CCC = Specific heat capacity of meat (~3.3 kJ/kg°C)
  • ΔT\Delta TΔT = Temperature difference (°C)

3. Refrigeration System Design

  • Compressor Selection: Choose compressors with capacity to handle calculated heat loads.
  • Evaporators: High-efficiency evaporators ensure rapid and uniform cooling.
  • Defrosting Systems: Implement automatic defrosting to prevent frost buildup and maintain efficiency.

4. Structural Design

  • PU Panels: Walls and ceilings should use polyurethane (PU) panels for excellent insulation and energy efficiency.
  • Flooring: Anti-slip and easy-to-clean floors ensure hygiene and worker safety.
  • Ventilation: Adequate air circulation prevents temperature hotspots and ensures uniform cooling.

5. Machine Selection Criteria

  • Capacity to handle peak carcass load.
  • Energy-efficient systems, such as variable frequency drive (VFD) compressors.
  • Compliance with food-grade materials and standards.

Impact on Product Quality by using Carcass chiller

  • Prevents Spoilage: Ensures the meat remains microbiologically safe during processing.
  • Enhances Taste and Texture: Proper chilling reduces the risk of cold shortening, preserving the natural tenderness of the meat.
  • Minimizes Weight Loss: Reduces moisture evaporation and drip loss, retaining the carcass’s natural weight.

Carcass Chiller Users in Bangladesh

In Bangladesh, carcass chillers are primarily used in modern slaughterhouses, meat processing plants, and facilities aiming to maintain international food safety and hygiene standards. The following entities are notable users of carcass chillers:

1. Bengal Meat

  • Website: bengalmeat.com
    Bengal Meat is a pioneer in the meat processing industry in Bangladesh. They operate state-of-the-art slaughterhouses equipped with carcass chillers to ensure high-quality meat products for domestic and export markets.

2. Dhaka City Corporation

  • Hazaribagh Modern Slaughterhouse
  • Kaptan Bazar Slaughterhouse
    These facilities, managed by local city corporations, are equipped with carcass chillers to process meat hygienically and meet urban demand for quality meat products.

3. Dutch Dairy

  • Website: dutchdairybd.com
    Dutch Dairy provides high-quality chilled meat processing services and is known for utilizing advanced chilling systems in their operations.

4. Private Meat Exporters

Many private companies engaged in meat export to the Middle East and other regions use carcass chillers to comply with international safety and quality standards.

Some of renowned brands for Carcass chiller

Here is some brands for refrigeration machinery and equipment’s

  1. Bitzer
    • Specializes in efficient and reliable compressors for commercial and industrial refrigeration.
    • Website: www.bitzer.de
  2. Danfoss
    • Offers a wide range of innovative and energy-efficient compressors.
    • Website: www.danfoss.com
  3. BOCK
    • Known for semi-hermetic compressors for cold storage and refrigeration systems.
    • Website: www.bock.de
  4. Copeland (by Emerson)
    • Industry leader in scroll and semi-hermetic compressors for refrigeration.
    • Website: www.emerson.com

Evaporator Brands for Carcass chiller

  1. Kelvion
    • Provides highly efficient air coolers and evaporators for industrial use.
    • Website: www.kelvion.com
  2. Güntner
    • Renowned for innovative air-cooling solutions in evaporators and condensers.
    • Website: www.guentner.com
  3. Eco
    • Offers a diverse range of evaporators for industrial refrigeration systems.
    • Website: www.ecofrig.com

Condenser Brands

  1. SPX Cooling Technologies (Marley)
    • Manufacturer of high-performance cooling towers and condensers.
    • Website: www.spxcooling.com
  2. Evapco
    • Specializes in condensers designed for energy efficiency and sustainability.
    • Website: www.evapco.com
  3. BAC (Baltimore Aircoil)

Other Refrigeration Equipment Brands

  1. Alfa Laval
    • Offers heat exchangers, plate chillers, and other refrigeration components.
    • Website: www.alfalaval.com
  2. Johnson Controls
    • Provides complete refrigeration solutions, including controls and monitoring systems.
    • Website: www.johnsoncontrols.com
  3. Thermofin
    • Known for high-performance heat exchangers and refrigeration systems.
    • Website: www.thermofin.net
  4. Frascold
    • Specializes in high-quality compressors and refrigeration accessories.
    • Website: www.frascold.it

In Bangladesh, Immenso stands out as a reliable supplier of carcass chillers and advanced meat processing machinery. Their products are specifically designed to meet the unique requirements of modern slaughterhouses and meat processing facilities.

Heat Load Calculation for a Refrigeration Carcass Chiller

Heat load calculation determines the cooling capacity required to maintain the desired temperature in a refrigeration system. Here’s a step-by-step guide with an example:

Step 1: Identify the Heat Sources

  1. Product Load
    • Heat removed from products during cooling.
  2. Transmission Load
    • Heat transfer through walls, ceilings, and floors.
  3. Ventilation or Infiltration Load
    • Heat introduced by air entering the space.
  4. Internal Load
    • Heat from lights, machinery, and personnel.
  5. Heat from Defrost Cycles
    • Heat introduced during evaporator defrosting (if applicable).

Step 2: Define Parameters

  • Volume of the room (V): Length×Width×Height\text{Length} \times \text{Width} \times \text{Height}Length×Width×Height (m³).
  • Desired room temperature: TrT_rTr​ (°C).
  • Ambient temperature: TaT_aTa​ (°C).
  • Insulation thickness and thermal properties.
  • Number of air changes per hour.

Step 3: Use Formulas

1. Product Load (QpQ_pQp​)

Qp=M×c×ΔT+M×LQ_p = M \times c \times \Delta T + M \times L Qp​=M×c×ΔT+M×L

  • MMM: Mass of the product (kg).
  • ccc: Specific heat of the product (kJ/kg·K).
  • ΔT\Delta TΔT: Temperature difference from initial to target (°C).
  • LLL: Latent heat (kJ/kg) for phase change (e.g., freezing).

2. Transmission Load (QtQ_tQt​)

Qt=U×A×(Ta−Tr)Q_t = U \times A \times (T_a – T_r) Qt​=U×A×(Ta​−Tr​)

  • UUU: Overall heat transfer coefficient (W/m²·K).
  • AAA: Surface area of walls, ceiling, and floor (m²).
  • Ta−TrT_a – T_rTa​−Tr​: Temperature difference (K).

3. Infiltration Load (QiQ_iQi​)

Qi=V×ρ×ca×ΔT×Air ChangesQ_i = V \times \rho \times c_a \times \Delta T \times \text{Air Changes} Qi​=V×ρ×ca​×ΔT×Air Changes

  • ρ\rhoρ: Density of air (1.2 kg/m³).
  • cac_aca​: Specific heat of air (1.006 kJ/kg·K).

4. Internal Load (QintQ_intQi​nt)

Qint=Qlights+Qmachinery+QpeopleQ_int = Q_{lights} + Q_{machinery} + Q_{people} Qi​nt=Qlights​+Qmachinery​+Qpeople​

  • Use typical wattage values for lights, machinery, and heat output per person.

5. Total Heat Load (QtotalQ_{total}Qtotal​)

Qtotal=Qp+Qt+Qi+QintQ_{total} = Q_p + Q_t + Q_i + Q_int Qtotal​=Qp​+Qt​+Qi​+Qi​nt

Step 4: Example Calculation

Room Details:

  • Room dimensions: 10×5×310 \times 5 \times 310×5×3 m.
  • Desired room temperature: Tr=4∘CT_r = 4^\circ CTr​=4∘C.
  • Ambient temperature: Ta=30∘CT_a = 30^\circ CTa​=30∘C.
  • Product: 1000 kg of meat.
  • Meat cooling: From 30∘C30^\circ C30∘C to 4∘C4^\circ C4∘C.
  • Specific heat (ccc): 3.1 kJ/kg\cdotpK3.1 \, \text{kJ/kg·K}3.1kJ/kg\cdotpK.
  • Latent heat (LLL): 240 kJ/kg240 \, \text{kJ/kg}240kJ/kg (if freezing).
  • U-value: 0.25 W/m²\cdotpK0.25 \, \text{W/m²·K}0.25W/m²\cdotpK.
  • Air changes: 2 per hour.

Step-by-Step Calculation:

  1. Product Load (QpQ_pQp​):

Qp=M×c×ΔTQ_p = M \times c \times \Delta T Qp​=M×c×ΔT Qp=1000×3.1×(30−4)=80,600 kJQ_p = 1000 \times 3.1 \times (30 – 4) = 80,600 \, \text{kJ}Qp​=1000×3.1×(30−4)=80,600kJ

  1. Transmission Load (QtQ_tQt​):
  • Surface area (AAA):

A=2×(10×3+5×3)+10×5=145 m²A = 2 \times (10 \times 3 + 5 \times 3) + 10 \times 5 = 145 \, \text{m²}A=2×(10×3+5×3)+10×5=145m² Qt=U×A×(Ta−Tr)Q_t = U \times A \times (T_a – T_r) Qt​=U×A×(Ta​−Tr​) Qt=0.25×145×(30−4)=942.5 W =3,393 kJ/hourQ_t = 0.25 \times 145 \times (30 – 4) = 942.5 \, \text{W} \, = 3,393 \, \text{kJ/hour}Qt​=0.25×145×(30−4)=942.5W=3,393kJ/hour

  1. Infiltration Load (QiQ_iQi​):

Qi=V×ρ×ca×ΔT×Air ChangesQ_i = V \times \rho \times c_a \times \Delta T \times \text{Air Changes} Qi​=V×ρ×ca​×ΔT×Air Changes Qi=150×1.2×1.006×(30−4)×2=9,745.92 kJ/hourQ_i = 150 \times 1.2 \times 1.006 \times (30 – 4) \times 2 = 9,745.92 \, \text{kJ/hour}Qi​=150×1.2×1.006×(30−4)×2=9,745.92kJ/hour

  1. Internal Load (QintQ_intQi​nt):
  • Lights: 200 W = 720 kJ/hour.
  • Machinery: 1 kW = 3600 kJ/hour.

Qint=720+3600=4,320 kJ/hourQ_int = 720 + 3600 = 4,320 \, \text{kJ/hour}Qi​nt=720+3600=4,320kJ/hour

  1. Total Heat Load (QtotalQ_{total}Qtotal​):

Qtotal=Qp+Qt+Qi+QintQ_{total} = Q_p + Q_t + Q_i + Q_int Qtotal​=Qp​+Qt​+Qi​+Qi​nt Qtotal=80,600+3,393+9,746+4,320=98,059 kJ/hourQ_{total} = 80,600 + 3,393 + 9,746 + 4,320 = 98,059 \, \text{kJ/hour}Qtotal​=80,600+3,393+9,746+4,320=98,059kJ/hour

Step 5: Convert to Cooling Capacity

  • 1 kW = 3600 kJ/hour.

CoolingCapacity=Qtotal/3600=98,059/3600=27.24 kW

Cooling Capacity = Q_{total} / 3600 = 98,059 / 3600 = 27.24 \, \text{kW}

Cooling Capacity=Q total​/3600=98,059/3600=27.24kW

This is an example of a carcass chiller heat load, the actual heat calculation may change depending on actual data and behavior.

Carcass Chiller System Losses and Gains

Efficient chiller system performance is essential for maintaining desired conditions, especially in industrial and slaughterhouse settings like carcass chillers. Understanding the losses, gains, and their management ensures optimal operation, energy savings, and extended equipment lifespan.

System Losses in a Chiller System

  1. Heat Infiltration Loss
    • Source: Air leaks through poorly sealed doors, windows, and joints.
    • Impact: Adds unwanted heat, forcing the system to work harder.
    • Management:
      • Use air-tight doors and seals.
      • Install air curtains or vestibules to minimize infiltration.
  2. Insulation Loss
    • Source: Insufficient or degraded insulation in walls, ceilings, and pipelines.
    • Impact: Allows heat transfer into the chilled space.
    • Management:
      • Use high-quality PU panels with appropriate thickness.
      • Conduct regular inspections and repair damaged insulation.
  3. Heat Load from Equipment
    • Source: Heat emitted by lights, motors, and fans inside the chiller room.
    • Impact: Increases the cooling load.
    • Management:
      • Use LED lights with low heat emission.
      • Ensure equipment is energy efficient and well-maintained.
  4. Compressor Inefficiencies
    • Source: Worn-out parts, inadequate lubrication, or outdated technology.
    • Impact: Reduces cooling capacity and increases energy consumption.
    • Management:
      • Schedule preventive maintenance for compressors.
      • Upgrade to high-efficiency models.
  5. Refrigerant Loss
    • Source: Leakage in pipelines or fittings.
    • Impact: Reduces system efficiency and cooling capacity.
    • Management:
      • Regularly inspect refrigerant lines for leaks.
      • Use advanced leak detection systems.
  6. Defrost Cycles
    • Source: Ice accumulation on the evaporator coils.
    • Impact: Increases system downtime and energy consumption.
    • Management:
      • Use automatic defrost systems with optimized cycles.
      • Ensure adequate airflow across the evaporator.

System Gains in a Chiller System

  1. Energy Recovery Systems
    • Description: Recover waste heat from the compressor or condenser to preheat water or other utilities.
    • Benefits: Reduces overall energy consumption and operational costs.
  2. Variable Frequency Drives (VFDs)
    • Description: Adjust the speed of compressors, fans, and pumps based on demand.
    • Benefits: Enhances system efficiency and reduces energy usage.
  3. Advanced Controls and Monitoring
    • Description: Use IoT-enabled systems to monitor performance in real-time.
    • Benefits: Allows predictive maintenance and immediate corrective actions.
  4. Energy-Efficient Refrigerants
    • Description: Use refrigerants with high thermal efficiency and low global warming potential (GWP).
    • Benefits: Reduces energy requirements and environmental impact.

Chiller Management Best Practices

  1. Regular Maintenance
    • Inspect and clean evaporator and condenser coils.
    • Lubricate moving parts and tighten connections.
    • Check refrigerant levels and pressure.
  2. System Optimization
    • Optimize setpoints for temperature and humidity.
    • Schedule operations during off-peak hours for reduced energy costs.
  3. Load Management
    • Avoid overloading the system beyond its designed capacity.
    • Use load-sharing techniques if multiple chillers are operational.
  4. Temperature Monitoring
    • Install sensors to monitor temperature variations within the chiller room.
    • Maintain a temperature range of 0 to 4°C, ensuring carcass core temperature does not exceed +7°C.
  5. Design Considerations
    • Properly size the chiller to match the cooling load requirements.
    • Ensure adequate ventilation and airflow around the chiller system.

admin

Leave a Reply

Your email address will not be published. Required fields are marked *

Category
